OVERHEAD (EOT) CRANES

Overhead Cranes are the most popular material handling equipment and used in almost all industries. ICON Engineering offers Overhead Cranes in Single Girder or Double Girder Construction. Our cranes efficiently carry out every kind of lifting and moving requirement offering safe moving of light to heavy objects.

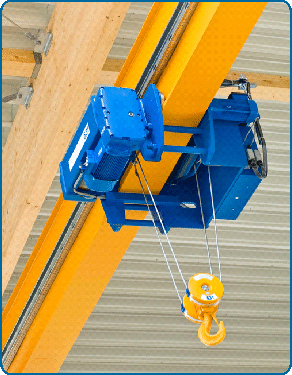

  • Single Girder EOT Cranes
    Single Girder EOT Cranes are built by us keeping in mind the global standards and needs. We offer custom-designed and economically priced durable and hassle-free performing cranes.
  • Double Girder EOT Cranes
    We offer our clients reliable and durable Double Girder EOT Cranes that meet global standards of safety and quality. These are recommended for medium to heavy-duty applications.

TYPICAL COMPARISON OF SINGLE v/s DOUBLE GIRDER EOT CRANES

PARAMETER SINGLE GRIDER DOUBLE GRIDER
Span Used for spans upto 20 M Can be used for span higher than 20 M
Duty Used for light to medium duty applications Used for heavy duty applications
Capacity Used for capacities upto 20 tons Used for capacities ranging from 1 ton to 500 tons
Maintainence Slightly laborious for maintenance Convenient for maintenance
Price Cheaper on price basis Expensive on price basis
Clearances Better hook approach dimensions for both trolley and bridge travel While the hook approach are higher than single girder crane, Double Girder crane can achieve higher lift

Note: Above mentioned characteristics are typical features and not necessarily a norm. Specially designed Single / Double Girder Cranes are available from ICON ENGINEERING.




Special Features of Single & Double Girder E.O.T. Cranes

  • Design conforms to IS 3177 / IS 4137 / BS 2573 and other internally accepted standards as per Client Requirement.
  • Superior Design with balanced weight profile for long life, lower maintenance, reduction of operational risks.
  • Micro-speed option is available.
  • Auxiliary Hoist on Double Girder Cranes as an option is also available.
  • Modular Design helps the client in the long run for easy maintenance and serviceability.
  • Single Girder EOT cranes use beam or box construction, designed to match the space available in your manufacturing facility.
  • Where there is a unavailability of space, low headroom hoists can be used with Single Girder E.O.T Cranes to suit client requirements.
  • All components are selected as per their suitability for Crane Duty applications.
  • All Motions are protected with load travel limit mechanisms to ensure safety.
  • Cranes can also be offered with load limiting mechanism to avoid accidental overloading of the cranes.
  • Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width is provided for Double Girder E.O.T. cranes.

Icon Engineering specializes in manufacturing the following cranes in Single / Double Girder Configurations:

PARAMETER SINGLE GRIDER DOUBLE GRIDER
Safe Working Load 1000 kgs to 25,000 kgs 5000 kgs to 10,000 kgs
Span 3 meters to 20 meters 5 meters to 50 meters
Height of Lift As per client requirement As per client requirement
Class of Duty Upto M5 as per ISO / 2m as per FEM M6 as per ISO / 3m as per FEM

Note: Icon Engineering specializes in offering custom built cranes to accommodate client requirements

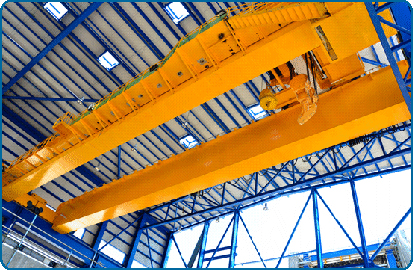

Double Girder EOT Cranes

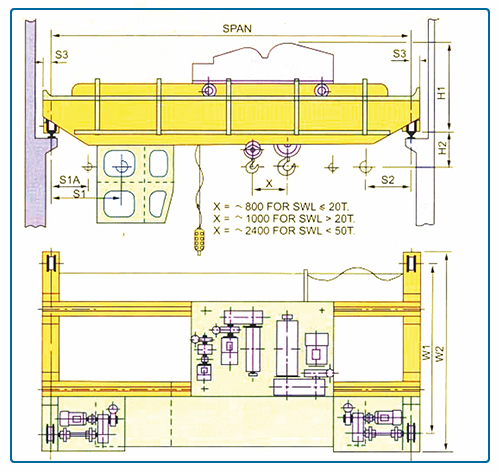

Leading Dimensions of DG EOT Cranes

SWL Span H1 H2 S1 S2 S3 W1 W2 Cm.W1 Wload
MT M mm MT
6 8 1400 100 800 750 160 3000 3700 7.20 4.90
10 1450 200 800 750 160 3000 3700 8.40 5.25
12 1500 300 800 750 160 3000 3700 9.00 5.30
14 1500 300 800 750 160 3000 3800 9.60 5.35
16 1500 300 800 750 160 3200 4000 11.30 5.80
18 1500 330 800 750 160 3600 4400 12.50 6.20
20 1500 370 800 750 160 4000 4800 13.80 6.50
22 1500 450 800 750 160 4400 5200 15.20 6.80
10 8 1600 170 1000 950 165 3200 4000 8.40 8.00
10 1700 230 1000 950 165 3200 4000 9.40 8.50
12 1750 250 1000 950 165 3400 4200 11.10 8.60
14 1750 250 1000 950 165 3400 4200 12.30 8.90
16 1800 300 1000 950 165 3400 4200 14.00 9.30
18 1800 350 1000 950 165 3600 4400 15.20 9.60
20 1800 350 1000 950 165 4000 4800 18.80 10.50
22 1800 400 1000 950 165 4400 5200 20.40 1.80
20 10 2100 100 1200 1050 220 4050 5150 14.30 15.00
12 2100 220 1200 1050 220 4050 5150 15.50 15.30
14 2100 220 1200 1050 220 4200 5350 18.00 15.90
16 2100 270 1200 1050 220 4250 5350 19.70 16.20
18 2100 420 1200 1050 220 4250 5350 22.10 16.80
20 2100 420 1200 1050 220 4250 5350 25.70 17.60
22 2100 470 1200 1050 220 4400 5500 28.40 18.30
30 10 2500 100 1200 1200 270 4900 5200 17.50 21.50
12 2500 100 1200 1200 270 4900 5200 21.10 22.30
14 2500 220 1200 1200 270 4900 5200 22.30 22.70
16 2500 220 1200 1200 270 4900 5800 26.30 23.30
18 2500 320 1200 1200 270 4900 6000 28.70 24.00
20 2600 320 1200 1200 295 4600 6000 32.50 25.00
22 2600 320 1200 1200 295 4600 6000 32.50 25.60
40 10 2600 100 1300 1200 270 4900 5200 22.30 28.40
12 2600 100 1300 1400 270 5100 6300 22.40 28.40
14 2600 220 1300 1400 270 5100 6300 23.60 28.60
16 2600 320 1300 1400 270 5100 6300 30.40 30.20
18 2700 330 1300 1400 270 5100 6300 34.10 31.10
20 2700 380 1300 1400 295 5100 6500 36.50 31.70
22 2700 430 1300 1400 295 5100 6600 42.80 39.10
10/03 10 1700 230 1300 950 165 3200 4000 8.90 8.25
12 1750 150 1300 950 165 3350 4200 11.60 8.90
14 1750 220 1300 950 165 3400 4200 12.80 9.20
16 1800 300 1300 950 165 3400 4200 14.50 9.60
18 1800 350 1300 950 165 3600 4400 15.70 9.90
20 1800 350 1300 950 165 4000 4800 19.30 10.80
22 1800 400 1300 950 165 4400 5200 20.90 11.00
20/5 10 2100 100 1300 1050 220 4050 5150 14.80 15.30
12 2100 220 1300 1050 220 4050 5150 16.00 15.60
14 2100 220 1300 1050 220 4250 4950 18.50 16.20
16 2100 270 1300 1050 220 4250 5350 20.20 16.70
18 2100 420 1300 1050 220 4250 5350 22.60 17.30
20 2100 420 1300 1050 220 4250 5350 26.20 17.90
22 2100 470 1300 1050 220 4400 5500 28.90 18.80
30/10 10 2500 100 1500 1200 270 4900 6200 18.30 21.90
12 2500 100 1500 1200 270 4900 6200 21.90 22.70
14 2500 220 1500 1200 270 4900 6200 23.10 23.10
16 2500 320 1500 1200 270 4900 6200 27.10 24.00
18 2500 320 1500 1200 270 4900 6200 29.50 24.40
20 2600 320 1500 1200 295 4900 6200 33.30 25.40
22 2600 380 1500 1200 295 4900 6200 36.00 26.00
40/10 10 2600 100 1500 1300 270 5100 6300 23.10 28.80
12 2600 400 1500 1300 270 5100 6300 23.20 28.80
14 2600 400 1500 1300 270 5100 6300 24.40 29.00
16 2600 400 1500 1300 270 5100 6300 31.20 30.60
18 2700 400 1500 1300 295 5100 6500 34.90 31.50
20 2700 400 1500 1300 295 5200 6500 37.30 32.10
22 2700 400 1500 1300 295 5200 6500 43.60 33.50
100/20 12 2300 500 1800 1500 400 5000 6500 54.00 31.70
14 3000 500 1800 1500 400 5000 6500 58.00 32.40
16 3100 500 1800 1500 400 5000 6500 62.00 33.10
18 3200 500 1800 1500 400 5600 7100 66.00 33.80
20 3300 500 1800 1500 400 5000 7100 76.00 35.20
22 3300 500 1800 1500 400 5600 7100 81.00 36.00
24 3400 500 1800 1500 400 5600 7100 86.00 36.90
SWL Span H1 H2 S1 S2 S3 W1 W2 Cm.W1 Wload
MT M mm MT
6 8 1600 100 850 800 160 3100 3800 8.25 6.60
10 1650 230 850 880 165 3100 3900 9.00 6.90
12 1650 230 850 880 165 3150 3950 9.50 7.00
14 1650 230 850 800 165 3200 4000 11.90 7.50
16 1700 300 850 800 165 3200 4000 13.60 7.90
18 1700 330 850 800 165 3600 4400 14.90 8.20
20 1800 350 850 800 165 4000 4800 16.30 8.50
22 1800 350 850 800 165 4400 5200 17.70 8.80
10 8 1900 150 1250 1100 180 3600 4500 10.00 11.20
10 1900 150 1250 1100 180 3700 4600 12.40 11.70
12 1950 300 1250 1100 180 3800 4500 12.50 11.75
14 1950 300 1250 1100 180 3800 4600 13.60 12.00
16 1900 300 1250 1100 180 3800 4600 17.80 13.00
18 1900 360 1250 1100 180 3800 4600 19.00 13.20
20 2000 400 1250 1100 220 4000 5100 22.10 13.90
22 2000 400 1250 1100 220 4400 5500 26.00 14.90
20 10 2200 220 1250 1200 220 4400 5500 14.90 18.00
12 2200 220 1250 1200 220 4600 5700 17.40 18.70
14 2200 220 1250 1200 220 4600 5700 19.80 19.20
16 2200 270 1250 1200 220 4400 5500 22.70 19.20
18 2400 420 1250 1200 270 4500 5800 27.50 21.00
20 2400 420 1250 1200 270 4500 5800 28.70 21.30
22 2400 470 1250 1200 270 4500 5800 31.40 22.00
35 10 2300 270 1400 1350 270 4800 5900 19.40 24.70
12 2500 270 1400 1350 270 5100 6300 19.50 24.70
14 2500 270 1400 1350 270 5100 6400 21.90 25.30
16 2500 270 1400 1350 270 4700 6000 27.10 26.60
18 2500 370 1400 1350 270 5100 6300 29.90 27.20
20 2500 520 1400 1350 270 5100 6300 33.60 28.00
22 2500 570 1400 1350 270 5100 6400 36.20 28.00
50 10 2700 130 1550 1300 295 5400 6800 23.90 34.10
12 2900 100 1550 1300 370 5400 7000 27.30 35.00
14 2900 100 1550 1300 370 5400 7000 32.10 36.10
16 2900 230 1550 1300 370 5400 7000 32.10 36.10
18 2900 230 1550 1300 370 5400 7000 37.70 37.70
20 2900 280 1550 1300 370 5500 7100 43.80 38.70
22 2900 280 1550 1300 370 5500 7100 47.60 39.70
15/03 10 1900 140 1300 1100 180 3700 4600 12.90 11.90
12 1900 210 1300 1100 180 3800 4600 13.00 12.00
14 1900 310 1300 1100 180 3800 4600 14.10 12.20
16 1900 310 1300 1100 180 3800 4600 18.30 13.20
18 1900 380 1300 1100 180 3800 4800 19.50 13.40
20 2000 420 1300 1100 220 4000 5100 22.60 14.10
22 2000 370 1300 1100 220 4400 5500 26.50 15.10
25/5 10 2200 220 1300 1200 220 4400 5600 15.40 18.30
12 2200 220 1300 1200 220 4000 5600 17.90 19.00
14 2200 270 1300 1200 220 4400 5600 20.30 19.50
16 2200 420 1300 1200 220 4400 5600 23.20 20.20
18 2400 270 1300 1200 270 4500 5600 28.00 21.30
20 2400 320 1300 1200 270 4500 5800 29.20 21.60
22 2400 420 1300 1200 270 4500 5800 31.90 22.30
35/10 10 2300 220 1500 1200 270 4900 5200 20.20 25.10
12 2500 220 1500 1200 270 4900 6200 20.30 25.10
14 2500 270 1500 1200 270 4900 6200 22.70 25.70
16 2500 270 1500 1200 270 4900 5200 27.90 27.00
18 2500 370 1500 1200 270 5100 6300 30.70 27.60
20 2500 520 1500 1200 270 5100 6300 34.40 28.40
22 2500 570 1500 1200 270 5100 6400 37.00 29.00
50/10 10 2700 500 1750 1300 370 5400 6800 24.90 34.60
12 2900 500 1750 1300 370 5400 7000 28.30 35.50
14 2900 500 1750 1300 370 5400 7000 33.10 35.60
16 2900 500 1750 1300 370 5400 7000 33.10 37.00
18 2900 500 1750 1300 370 5400 7000 38.70 37.90
20 2900 500 1750 1300 370 5500 7100 44.80 39.20
22 2900 500 1750 1300 370 5500 7500 48.60 40.20
75/15 12 2800 500 1750 1400 400 5000 6500 44.00 24.00
14 2900 500 1750 1400 400 5000 6500 47.00 24.60
16 3000 500 1750 1400 400 5000 7100 51.00 25.30
18 3100 500 1750 1400 400 5600 7100 55.00 26.00
20 3200 500 1750 1400 400 5600 7100 61.00 27.00
22 3200 500 1800 1400 400 5600 7100 68.00 27.90
24 3300 500 1800 1400 400 5600 7500 72.00 28.50
