Winch
Manual Winch
Manual Winches are the preferred choice of equipment by the customers for pulling/lifting operations during routine maintenance. Manual winches are typically used for low-duty applications.
Light Duty Hand Winches for Pulling / Lifting
| Model No | 1st Layer Pulling Capacity (Kg) | 1st Layer Lifting Capacity (Kg) | Braking Included | Winch Gear Type | Wire rope Length (Meter) |
| MPW-500 | 1500 | 500 | YES | SUPR | 20 |
| MPW-1000 | 3000 | 1000 | YES | SUPR | 20 |
| MPW-1500 | 4500 | 1500 | YES | SUPR | 25 |
| MPW-2000 | 6000 | 2000 | YES | SUPR | 30 |
| MPW-3000 | 9000 | 3000 | YES | SUPR | 30 |
Note:
- Higher Capacity Winches are available on request.
- Design Data is subject to change due to continuous design improvements.
LONGER SERVICE LIFE
- Heavy duty DC brake is designed for a long service life.
- Lifetime grease-lubricated Gear Box and helical gearing ensures better wear and smooth operation. Heavy duty rated motors.
- l Each Manual Winch features a load brake and is suited for both pulling and lifting.
- Longer crank handle offered easier operation for users.
- l Gear Ratio is typically from 1:5 to 1:30 depending on model size, application etc.

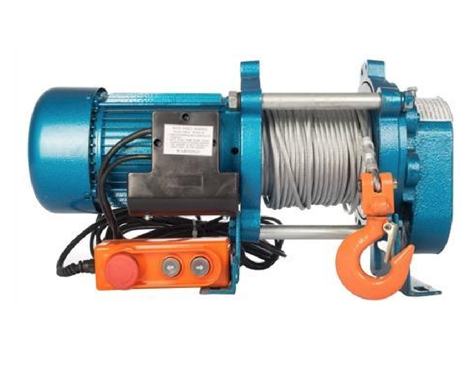

Electric Winch
Electric Winches are widely used across industries for all maintenance activities as well as regular lifting operations. Driven by electric power, these winches offer reliability and assurance for load-carrying capacity.
| Model No | 1st Layer Pulling Capacity (Kg) | 1st Layer Lifting Capacity (Kg) | Braking Included | Winch Gear Type | Wire rope Length (Meter) |
| ELW-500 | 3000 | 1000 | YES | Spur / Helical / Planetory | 50 |
| ELW-1500 | 9000 | 3000 | YES | Spur / Helical / Planetory | 50 |
| ELW-2000 | 15000 | 5000 | YES | Spur / Helical / Planetory | 50 |
| ELW-3000 | 25000 | 7500 | YES | Spur / Helical / Planetory | 50 |
| ELW-12.5T | 30000 | 10000 | YES | Spur / Helical / Planetory | 50 |
| ELW – 15T | 45000 | 15000 | YES | Spur / Helical / Planetory | 50 |
| ELW – 20T | 75000 | 25000 | YES | Spur / Helical / Planetory | 50 |
Note:
- Higher Capacity Winches are available on request
- Design Data is subject to change due to continuous design improvements
- Winches can be provided in SPARKPROOF & EXPLOSIONPROOF CONSTRUCTION
- Pulling Capacity assumes load mounted on wheels on a plain surface

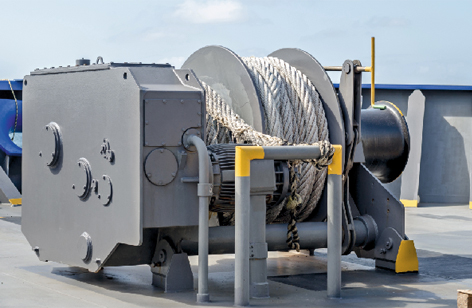

Special Purpose Winches
ICON ENGINEERING specializes in design, manufacture and supply of custom engineered equipment including a variety of winches required for myriad of applications such as mooring, screen pulling, positioning systems, etc
ICON ENGINEERING also offers all winches in SPARKPROOF & EXPLOSIONPROOF Construction as per customer requirement.
