Cranes

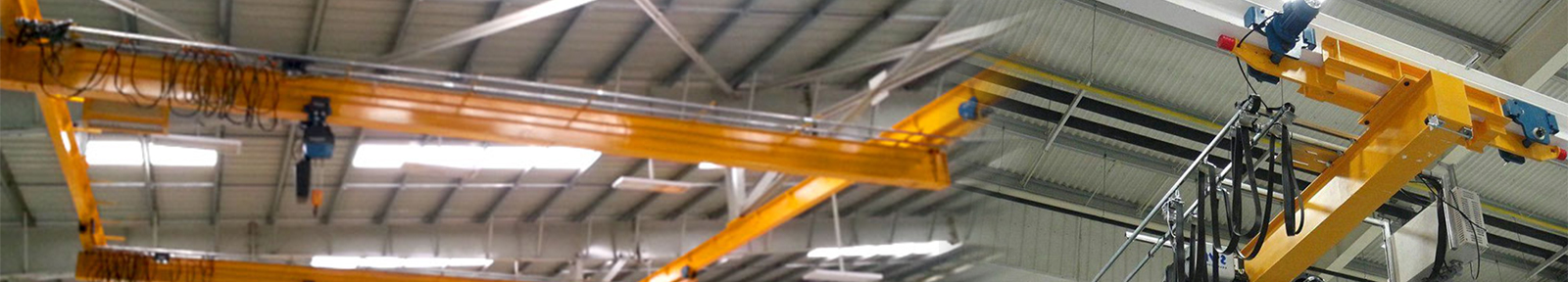

Underslung Cranes are often known as Bridge Cranes and are used when the building structure is extremely complex. These cranes are proven to maximize customer floor space and mobility. We have successfully designed and delivered Underslung Cranes for over a decade.

Such cranes are typically manufactured in Single Girder Construction as the requirement is usually for light duty / medium duty applications.

• Underslung Cranes are used to offer higher floor space and hook coverage area
• The crane is mounted on Beams which are supported from the roof of the building
• Low Headroom hoists are coupled with low headroom crane design to offer minimum over all headroom of the equipment, thereby enabling client to utilize these cranes in areas where space is at a very high premium.

Icon Engineering specializes in manufacturing the following cranes in Underslung EOT Configuration:

Safe Working Load	1,000 Kgs to 25,000 Kgs
Span	3 Meters to 30 Meters
Height of Lift	As per Client Requirement
Class of Duty	M4 as per ISO / 1 Am as per FEM

NOTE : Special Purpose Applications are also developed by ICON
